Onsite Installation and  Training Visit


In some cases, a site visit is helpful to set up and calibrate imaging instrumentation purchased from BIOQUANT and train on new projects. This service is available for an additional fee, normally included as part of a comprehensive proposal.

Training in the use of the software is usually best provided individually, on demand, using a remote connection via the Internet. Individualized remote training is part of our comprehensive technical services plan. We encourage you to schedule remote training at your convenience!

Preparation for Site Visit

The training is the most successful if all necessary equipment is in the laboratory and working before the trainer arrives. Please use the following checklist to make sure your system is ready for the day of training. If you need technical assistance, please feel free to contact technical support at 800-221-0549 Ext 11 or support@bioquant.com.

For Computer and Camera Systems Not Purchased from BIOQUANT

  1. Operating System Preparation
    • Install Windows 7 32-bit or 64-bit Professional or Enterprise edition or Windows 10 Professional 64-bit.
    • Install the BIOQUANT BQV Board in the computer. The drivers for this card are on the BIOQUANT installation disk. Refer the included document: Getting Started: Installation, "Installing the BQV Board."
    • Once the BQV board has been installed, follow the directions in Getting Started: “Configuring the Ideal Desktop Screen Resolution”
  2. For Systems Connected to a Camera
    • Attach the camera to the microscope. Confirm that the camera mounts correctly to the photoport of the microscope with the camera coupler.
    • Follow the directions in Getting Started: Installation, “Install Drivers for the QImaging Digital Camera.”
  3. Install the BIOQUANT software, sample datasets and images, and manuals.
  4. Confirm Proper Camera Operation
    • Acquire an image from the camera. See "Using the QImaging Camera" in the “Image Region, Calibration, and Imaging Region” section of the BIOQUANT OSTEO or BIOQUANT Life Science manual.
    • Confirm that the image from the camera does not vignette with any objectives or condensers. Pay particular attention to the low powered objectives.
  5. Install Microsoft Excel. BIOQUANT can dynamically link to a data table in Microsoft Excel.
    • Note: The "Click to Run" version of Microsoft Excel that is dynamically installed over the internet is not supported by BIOQUANT software.
  6. Confirm that the computer has Internet access. This is required for later technical support service.

For Computers and Camera Systems Purchased from BIOQUANT

  1. Assemble the computer per the included hardware diagram.
  2. Attach the camera to the microscope. Confirm that the camera mounts correctly to the photoport of the microscope with the camera coupler.
    • Connect the firewire cable from the firewire board in the computer to the QImaging camera, per the hardware diagram. Take care to note the shape of the firewire connector ends and match them correctly to the port on the board and camera.
    • Acquire an image from the camera. See "Using the QImaging Camera" in the “Image Region, Calibration, and Imaging Region” section of the BIOQUANT OSTEO or BIOQUANT Life Science manual.
    • Confirm that the image from the camera does not vignette with any objectives or condensers. Pay particular attention to the low powered objectives.
  3. Install Microsoft Excel. BIOQUANT can dynamically link to a data table in Microsoft Excel.
  4. Confirm that the computer has internet access. This is required for later technical support.

Onsite Visit Overview

Definition of the Day of Installation and Configuration

The day of installation and training can either consist of one six hour day, or a consecutive afternoon and morning. A  six hour day of training typically runs from 9:00AM to 4:00PM with a one hour break for lunch. A split day of training typically runs from 2:00PM to 5:00PM on day 1 and 9:00AM to noon on day 2. The Designated User must attend the entire training. One additional user may also attend the training. Past experience suggests that trainings are most productive if the number of separate projects to be discussed is three or fewer.

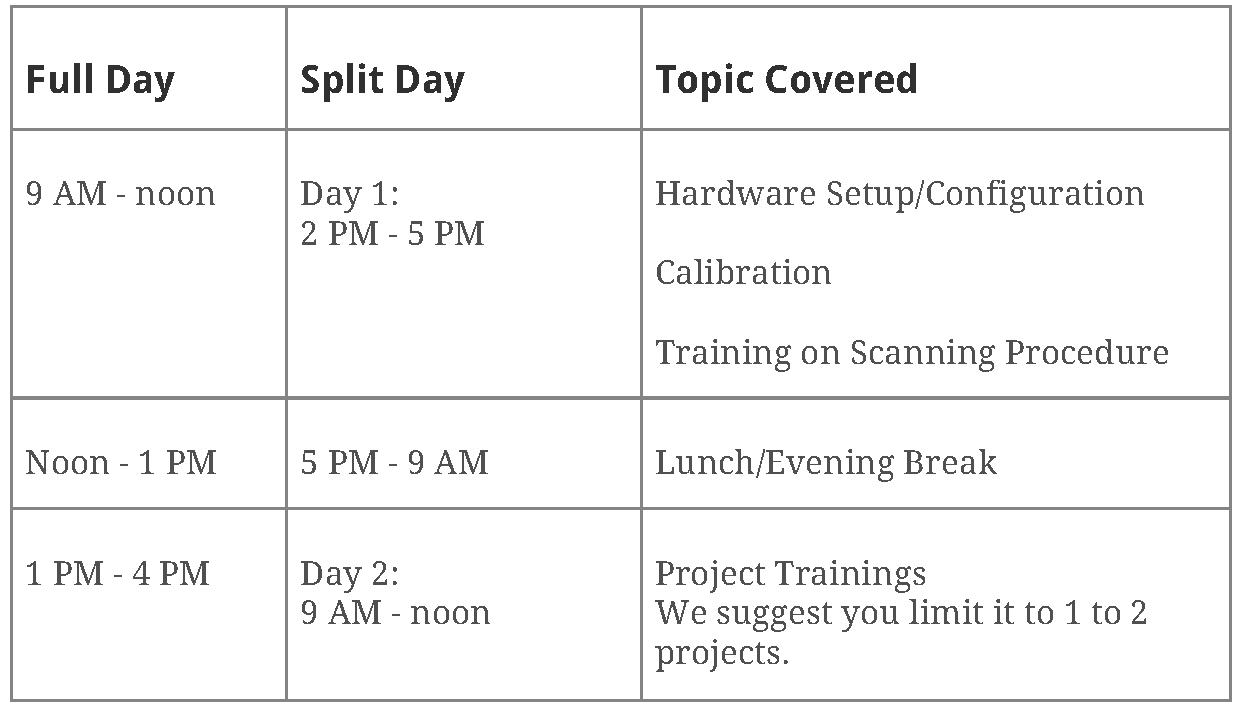

Suggested Training Agenda

This agenda is designed to provide both a general awareness of each function of the software as well as to develop concrete data collection procedures which will allow data collection to begin as soon as possible. Naturally, it is only a general guideline and will be adapted to suit the needs and projects of the laboratory.

BIOQUANT On-Site Training Request Form

When you are ready to request training, use the following form:

Registered System Information
Please enter the following system information. This information was included on the email with the link to the Training Request Form.
This is the four digit number assigned to your BIOQUANT system.
Payment Due Date *
Payment Due Date
This is the day payment is current scheduled for receipt. Training cannot be scheduled before this date.
Pre-training Checklist
Preparation that you do before the training so we have more time to train.
Computer is installed with Windows 7 or Windows 10 Pro or Ultimate. *
BIOQUANT requires 32-bit or 64-bit Windows 7 Professional or Ultimate or 64-bit Windows 10 Professional. If you purchased the computer from us, this step has already been done.
The desktop resolution has been set to 1920 x 1200 *
BIOQUANT requires a 24" monitor. The Dell Ultrasharp 24" monitor is recommended.
BQ-V Board has been installed *
Instructions for installing the BQ-V board are in the Getting Started: Installation section of the manual. If you would like help, contact us at 800-221-0549. If you purchased the comptuer from BIOQUANT this step is already done.
Camera Users: Camera has been installed and live image is accurate. *
If you are using a color QImaging Retiga EXi, Micropublisher 5.0, or QICAM-F digital camera follow the instructions included in your black folder for installing the camera. Confirm that you can get a live image without microscope vignetting to ensure the correct coupler is in place. For help contact technical support. If you purchased the computer from us, this step has already been done.
Third Party Image Source
If you are montaging images from a third party image source, please let us know.
BIOQUANT has been installed *
There is a different installation DVD for Windows 32-bit and Windows 64-bit. Instructions for installing BIOQUANT are in the Getting Started: Installation section of the manual. If you purchased the computer from us, this step has already been done.
Computer has Internet Access *
Internet access is required for BIOQUANT Technical Support Services.
Microsoft Excel has been installed on the Computer *
Microsoft Excel is required if you want to dynamically move data from the BIOQUANT Data Manager to Microsoft Excel.
Training Date Request
Request your top 4 choices for training dates. Consecutive split days (afternoon and following morning) can be requested. A training date cannot be scheduled before payment for it has been received.
Requested Training Date: 1st Choice *
Requested Training Date: 1st Choice
Requested Training Date: 2nd Choice
Requested Training Date: 2nd Choice
Requested Training Date: 3rd Choice
Requested Training Date: 3rd Choice
Requested Training Date: 4th Choice
Requested Training Date: 4th Choice
Would you like a Split Day of Training? *
If you would like a Split Day of Training, the first day would be on the afternoon of the requested training date and the second day would be the following morning.
Training Attendees
Indicate the two people who will attend the day of training.The Designated User must attend the entire training. One additional user may also attend the training.
Attendee 1: Designated User *
Attendee 1: Designated User
Please indicate the first of two people who will attend the day of training.
Attendee 2: Additional Trainee
Attendee 2: Additional Trainee
Please indicate the second of two people who will attend the day of training.
Projects
Indicate the three projects to be covered on the day of training. For each project provide a project description. Past experience suggests that trainings are most productive if the number of separate projects to be discussed is three or fewer. You may want to spend more than the suggested time on a project. Training on 3D modeling, bone morphometry, and stereology, for example, often requires two time slots. We can make a recommendation about the time required to cover a particular project after we receive the Project Description forms. If only one person is being trained, it is often helpful to make one project a thorough walk through of the software menu item by menu item.
Enter the name of the first project to be covered.
Please provide a summary of the project. This will assist the trainer in preparing an informative, efficient training. Feel free to email sample image files of your specimens to support@bioquant.com. They will be forwarded to the proper trainer.
Enter the name of the second project to be covered.
Please provide a summary of the project. This will assist the trainer in preparing an informative, efficient training. Feel free to email sample image files of your specimens to support@bioquant.com. They will be forwarded to the proper trainer.
Enter the name of the second project to be covered.
Please provide a summary of the project. This will assist the trainer in preparing an informative, efficient training. Feel free to email sample image files of your specimens to support@bioquant.com. They will be forwarded to the proper trainer.
